Cultured Stone Siding Panels Production Line Fully Automatic
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | ISO9001 |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Product Name: | Out Demoulding Wet Doser Machine | Size: | 7000*1000*1800mm |
|---|---|---|---|
| Model: | HTX-P-01 | Weight: | 2000kg |
| Usage: | Construction | Color: | Blue |
| High Light: | Cultured Stone Concrete Dosing Machine,Siding Panels Production Line Fully Automatic |
||
Product Description

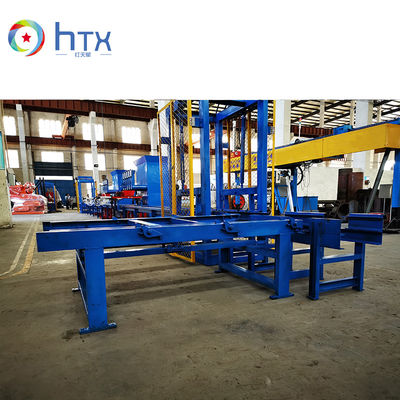

Fully Automatic Cultured Stone Siding Panels Production Line
Product Description
Fully Automatic Cultured Stone Siding Panels Production Line, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .The mold is turned over from one conveying platform to another conveying platform through the turning frame, so as to realize the turning of the mold and prepare for the subsequent demoulding.
Turning over the pallet with molds by 180C,place the molds and catch back the empty pallet to the main hydraulic conveyor.
· Hydraulic(turning) +Pneumatic (pallet&molds control)
· Pallet turning speed is adjustable(frequency motor controller)
· With transport roller conveyor for shipping the molds to the demolding machine
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
