Cultured Stone Wall Panels Fabrication Plant Marble Concrete Making Machine
Product Details:
Place of Origin: | China |
Brand Name: | HTX |
Model Number: | HTX-P-01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | 40000-200000/USD |
Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50Sets/Month |
Detail Information |
|||
Product Name: | Cultured Stone Siding Panels | Color: | Blue |
---|---|---|---|
Brick Type: | Concrete Dosing System | Weight: | 2000KG |
Stone Form: | Wall Brick | Usage: | Construction |
Highlight: | Cultured Stone Wall Panels Fabrication Plant,Marble Concrete Making Machine,Marble Concrete Wall Panel Machine 2000KG |
Product Description
Cultured Stone Wall Panels Fabrication Plant Marble Concrete Making Machine

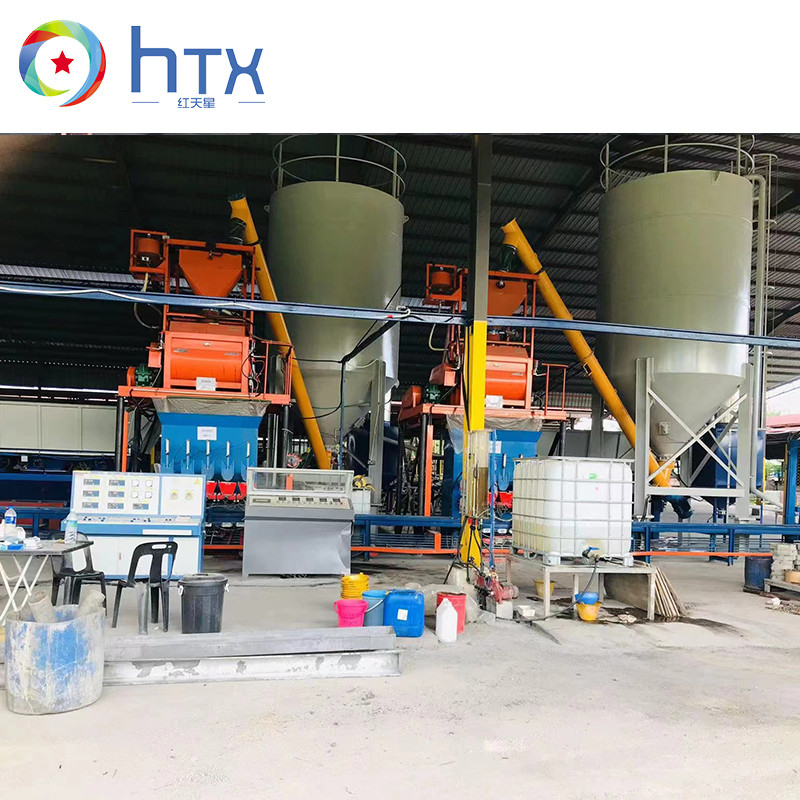

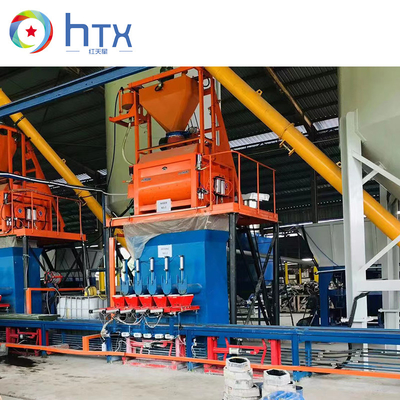

exterior natural culture stone making machine production uses single-silo ingredients. Your cement can be directly transferred to the mold through the silo, and conveyed through the transmission belt to improve production efficiency. The daily production output is 500-600 square meters, which is completely impossible for manual production lines. The length of the entire production line is 8 meters, which can be expanded to 15 meters according to demand, requiring a workshop space of 300-400 square meters; it has the functions of timing cutting, timing vibration, and fixed-point transmission. The full auto production line include cement silo, batching machine, and forced auto mixer. The cement silo need equipped with a screw feeder. To delivery cement into mixer. The batching machine have two or three hoppers. And have weighted function at bottom of each hopper. If the number of bricks produced is small, it can be demolded manually, but if the number of produced bricks is large, a demoulding machine is needed to help the old quickly demould. Our machine can be adjusted according to the size of the mold, that is, all the The mold can be demolded on the demolding machine.
Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
