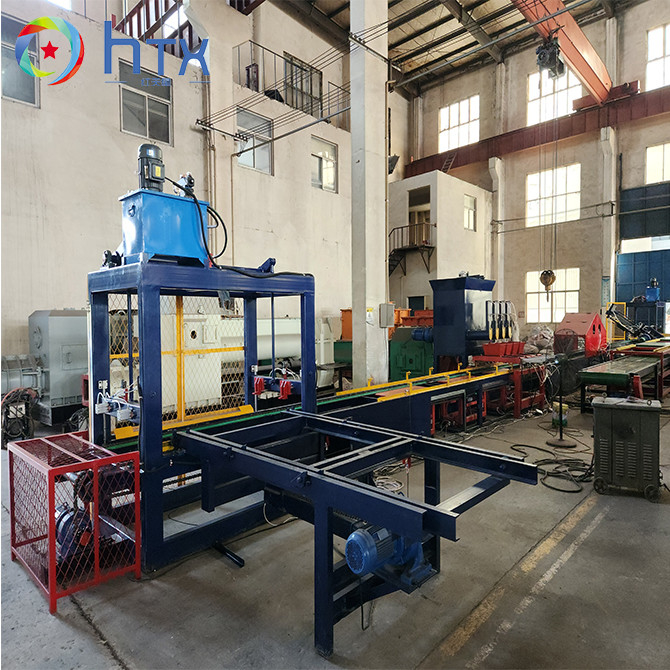

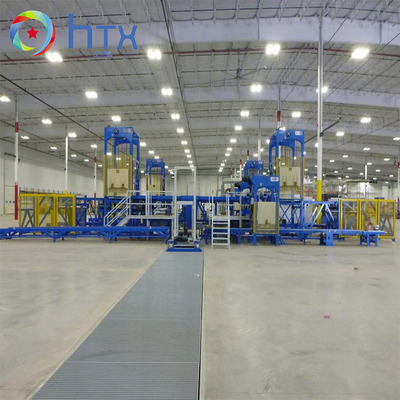

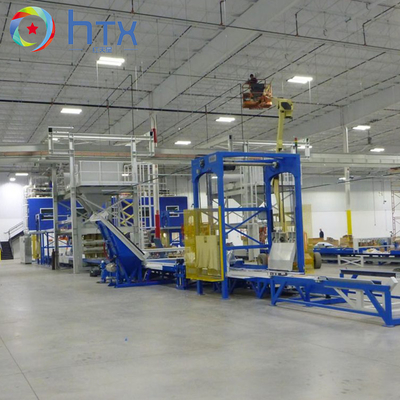

Highly Road Edge Stone Casting Production Line Artificial Stone Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Fence Panel Machine | Function: | Long Service Life |
|---|---|---|---|
| Key Selling Points: | Easy To Operate | Easy To Operate: | Interior And Exterior |
| Feature: | Easy To Operate | Voltage: | 220V |
| High Light: | automated fence panel machine,fence panel making machine,panel master fencing machine |
||
Product Description
A road edge stone casting production line refers to a manufacturing process designed to produce road edge stones or road kerbs through casting. Road edge stones, also known as curb stones or kerbstones, are solid, durable materials used to define the edges of roads, sidewalks, and other paved surfaces. They help to separate the road from adjacent areas, provide structural support, and prevent vehicles from driving off the road.
The production line for road edge stone casting typically involves the following steps:
1.Mold Preparation: The process begins with the preparation of molds or forms that will give the road edge stones their desired shape and dimensions. The molds can be made of various materials, such as metal, fiberglass, or rubber, depending on the specific requirements.
2.Preparing the Mixture: The casting mixture is prepared by combining the appropriate materials. The main components typically include cement, aggregates (such as sand or crushed stone), water, and additives (if required). The mixture is thoroughly mixed to achieve uniformity and desired consistency.
3.Mold Filling: The prepared casting mixture is poured or placed into the prepared molds. The molds are filled carefully to ensure proper distribution of the mixture and to avoid air pockets or voids.
4.Demolding: Once the road edge stones have sufficiently cured and hardened, the molds are opened, and the newly formed stones are demolded. Care must be taken during the demolding process to avoid damaging the stones.
5.Surface Finishing: Depending on the desired appearance and functionality of the road edge stones, surface finishing may be performed. This can include processes such as grinding, polishing, or applying textured finishes to enhance the aesthetic appeal and improve slip resistance.
6.Packaging and Distribution: The final step involves packaging the road edge stones for transportation and distribution to construction sites. They are typically stacked on pallets or packaged in crates to facilitate easy handling and prevent damage during transit.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
