Concrete Slate Roof Tile Production Line Fence Panel Manufacturing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Veneer Stone Production Line | Power: | 12.7 KW |
|---|---|---|---|
| Application: | Buliding Construction | Feature: | Easy To Operate |
| Size: | 7000*1000*1800 | ||
| Highlight: | automated fence panel machine,fence panel making machine,panel master fencing machine |
||
Product Description

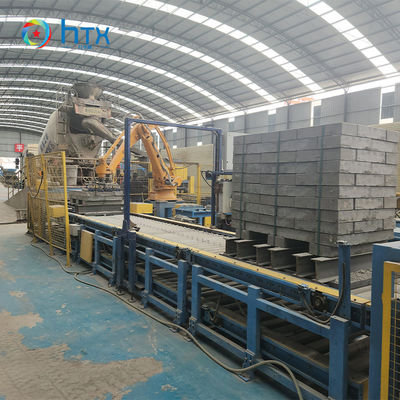

A concrete slate roof tile production line is a manufacturing process used to produce concrete slate roof tiles in a systematic and efficient manner. This production line typically consists of several stages and machinery that work together to transform raw materials into finished roof tiles. Here is a general overview of the steps involved in a concrete slate roof tile production line:
1.Raw Material Preparation: The first step is to prepare the raw materials needed for the production of concrete slate roof tiles. This typically involves sourcing cement, sand, water, and any additional additives required for the mixture.
2.Mixing: In this stage, the raw materials are mixed together in specific proportions to create the concrete mixture. This is usually done in a concrete mixer or a specialized mixing machine. The mixing process ensures that the ingredients are evenly distributed and form a consistent mixture.
3.Molding: The concrete mixture is then transferred to a molding machine, where it is poured into molds that are designed to produce the desired shape and texture of the slate roof tiles. The molds can be made of metal or other materials and are carefully crafted to replicate the appearance of natural slate.
4.Curing: Once the molds are filled, the concrete slate tiles need to undergo a curing process. Curing involves allowing the tiles to harden and gain strength over a specific period. This can be achieved through air drying or by placing them in a controlled environment, such as a curing chamber, where temperature and humidity conditions are optimized for proper curing.
5.Finishing: After the tiles have cured, they are removed from the molds and undergo finishing processes. This may include trimming any excess material, smoothing the edges, and applying surface treatments or coatings to enhance the appearance and protect the tiles.
6.Quality Control: Throughout the production line, quality control measures are implemented to ensure that the manufactured concrete slate roof tiles meet the required standards. This can involve visual inspections, strength testing, dimensional checks, and other quality assurance procedures.
7.Packaging and Distribution: Once the tiles pass the quality control checks, they are typically packaged and prepared for distribution. They may be stacked, wrapped, or palletized for easy transportation and storage.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
