Automatic Concrete Artificial Stone Feeding Machine Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Wet Cast Concrete Stone Veneer Production Line | Keywords: | Automatic Concrete Casting Wet Doser Machine |
|---|---|---|---|
| Function: | Producing Artificial Stone | Color: | Blue |
| Auto Degree: | Fully Automatic | Capacity: | 800-1000m2 |
| Highlight: | Artificial Stone Feeding Concrete Dosing Machine,1000m2 Artificial Stone Machine,Concrete Dosing Stone Production Line |
||
Product Description
Automatic Concrete Artificial Stone Feeding Machine Production Line
Product Description

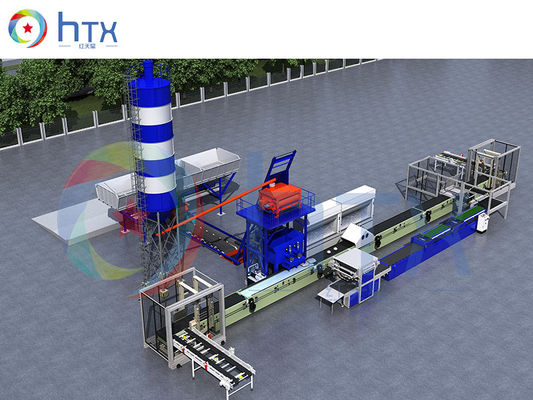

artificial stone production line include cement silo, batching machine, and forced auto mixer. The cement silo need equipped with a screw feeder. To delivery cement into mixer. The batching machine have two or three hoppers. And have weighted function at bottom of each hopper. All the three machines need a PLC controller to control each function. Then come to dosing part, spraying part. The dosing part feed material by weight and time, and equipped with conveyor and vibration point. The spraying part can remove dust and spray demold oil or spray color. The dosing part also have touch screen PLC controller.Other parts are demold machine, unloading and loading machine, package machine, dust clearance machine, and so on. All the system can be customized
1. More efficient production, can achieve 800M2 Per day (8hrs)
2. Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
3. Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.
4. The auto spray painting machine, has function for mold oil painting, stroll color painting and full color painting, also it can be turned on/off separately.
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Artificial stone production line | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
