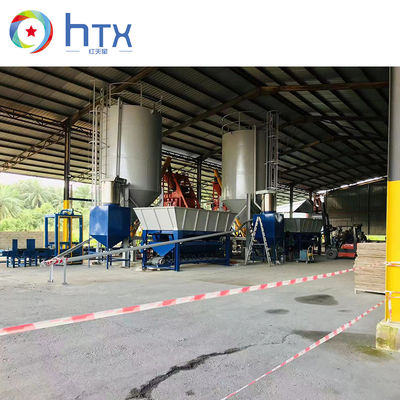

Automatic Artificial Veneer Stone Production Line 2000KG
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Concrete Artificial Stone Making Machine | Color: | Blue |
|---|---|---|---|
| Usage: | Producing Artificial Stone Veneer | Key Word: | Automatic Concrete Casting Wet Doser Machine |
| Material: | Steel | Auto Degree: | Fully Automatic |
| Weight: | 2000KG | ||
| High Light: | Artificial Veneer Stone Production Line 2000KG,Automatic Concrete Veneer Stone Production Line |
||
Product Description
Automatic Artificial Stone Producing Line Manufactured Stone Veneer Production Line Machine
Automatic wet concrete cast dosing machine, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .The mold is turned over from one conveying platform to another conveying platform through the turning frame, so as to realize the turning of the mold and prepare for the subsequent demoulding. Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds.
The cultural stone production line relates to the technical field of artificial stone production, and discloses an artificial cultural stone mold turning device, comprising a first conveying platform and a second conveying platform arranged in parallel, and a turning frame is arranged between the first conveying platform and the second conveying platform,A clamping mechanism is arranged in the overturning frame, the end of the overturning frame is provided with a holding mechanism corresponding to the clamping mechanism, and the second conveying platform includes a material receiving and conveying mechanism corresponding to the overturning frame and the clamping mechanism. Five or Five doser system, with both weight and time control and five dosing switching door with pneumatic system. Each dosing screw can be controlled separately ,and each dosing hopper has its own weighing system, all can be setted up according to the real requirements.Manual cleaning spraying system included.
Specification
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Artificial stone production line | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
FAQ
1) Q:Are you a factory or trading company?
A:We are a trading company integrating factories, overseas warehouses and trade.
2) Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou, Henan Province, China
you can fly to Zhengzhou Xinzheng International Airport .
All our clients, from home or abroad, are warmly welcome to visit us!
3) Q:What is thepayment terms?
A: L/C ,T/T, Western Union,Cash
4) Q:How can I get some samples?
A: Kindly send us your address, we are honored to offer you samples.
