Artificial Stone Wall Panel Production Line Exterior Slab Feeder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Product Name: | Cement Artificial Stone Production Line | Key Word: | Concrete Dosing System |
|---|---|---|---|
| Advantage: | Multi Function Wet Casting Doser Machine Production Line | Usage: | Producing Artificial Stone Veneer |
| Weight: | 2000KG | Power: | 12.7 KW |
| Capacity: | 800-1000m2 | ||
| High Light: | Artificial Stone Exterior Slab Feeder Machine,Slab Feeder Wall Panel Production Line |
||
Product Description

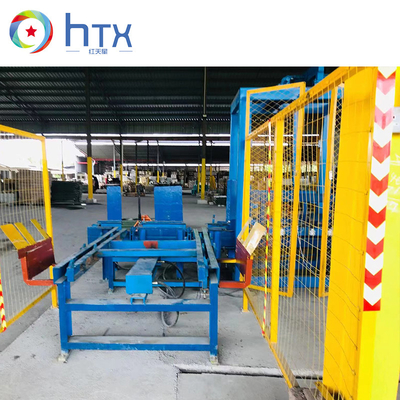

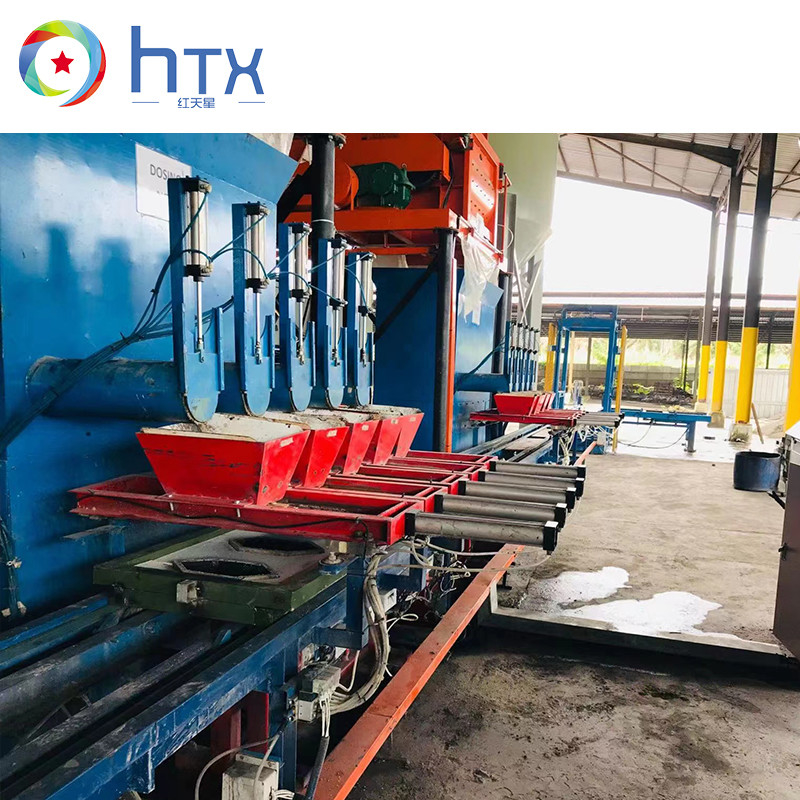

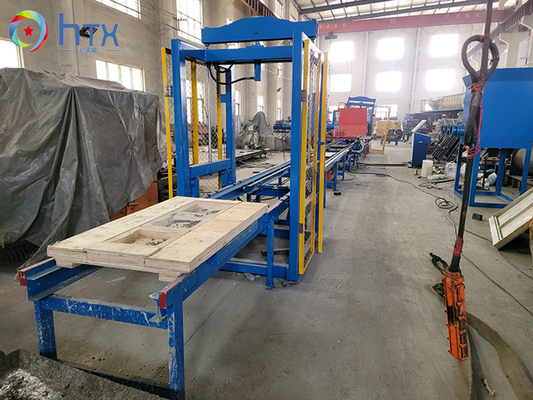

Artificial Man Made Stone Exterior Slab Feeder Machine Production Line
Product Application:
Auto-automatic production line uses single-silo ingredients. Your cement can be directly transferred to the mold through the silo, and conveyed through the transmission belt to improve production efficiency.
Let's learn the function of each part of paving block artificial stone production line:
The cement silo, used to stock the cement in the tank and ship the cement powder to the batching machine as required quantity. As for artificial stone producing capacity, the 30T model is the suitable one.
The cement silo tank is equipped with a material level system, which can display the position and amount of the material, and the hole-breaking device can relieve the solidity caused by the material deposition for too long.
At present, the more common types of cement silos on the market include horizontal cement silos, vertical cement silos, and assembled cement silos (also called sliced cement silos).
1. The horizontal cement silo is square, the bottom is supported by several legs, the discharge cone is a square cone, the silo is welded by a frame composed of corrugated cardboard and profiles, and the overall height is low.
The production workshop of the horizontal cement silo is a complete set of production, and there is no basic installation on site. The horizontal cement silo is mainly used for mobile batching plants and concrete batching plants.
2. The vertical cement silo is a cylindrical structure, and the bottom is supported by four round tube legs. The entire silo is welded with steel structure, and the top is equipped with a dust collector and a pressure relief valve.
Vertical cement silo is suitable for bulk cement and dry fly ash. It has the characteristics of rainproof, moistureproof and easy to use. Usually used as a supporting product for concrete batching plants (construction).
3. Prefabricated cement silo, also known as sheet cement silo, is made into thin sheets during production, which is convenient for transportation and used after assembly, especially suitable for export.
The installation of the flake cement silo is more complicated and the cost is higher, but the transportation of the flake cement silo is more convenient.
Specification
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Artificial stone production line | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Packaging & Shipping
,
1) Q:Are you a factory or trading company?
A:We are a trading company integrating factories, overseas warehouses and trade.
2) Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou, Henan Province, China
you can fly to Zhengzhou Xinzheng International Airport .
All our clients, from home or abroad, are warmly welcome to visit us!
3) Q:What is thepayment terms?
A: L/C ,T/T, Western Union,Cash
4) Q:How can I get some samples?
A: Kindly send us your address, we are honored to offer you samples.
