Wet Casting System Stacked Stone Concrete Sleepers Production Line

Wet Casting System Stacked Stone Concrete Sleepers Production Line

Product Details:

Place of Origin: China
Brand Name: HTX
Certification: POSI CERTIFICATE
Model Number: HTX-P-01

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: 15000-80000/USD
Packaging Details: Carton
Delivery Time: 30Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50Sets/Month
Get Best Price Contact Now

Detail Information

Product Name: Fence Panel Machine Function: Producing Artificial Stone
Stone Form: Wall Brick Feature: High Productivity
Auto Degree: Fully Automatic Key Selling Points: Easy To Operate
High Light:

automated fence panel machine

,

fence panel making machine

,

panel master fencing machine

Product Description


Wet casting is a method of casting concrete products in a mold using a wet mix. A wet casting system is a set of equipment and processes used to produce concrete products using this method. Wet casting systems are commonly used in the production of precast concrete products, such as paving stones, retaining walls, and decorative concrete elements.
The wet casting process involves the use of a mold, which is typically made of steel or polyurethane. The mold is coated with a release agent, and then a wet concrete mix is poured into the mold. The mold is then vibrated to ensure that the concrete is evenly distributed and to remove any air pockets. The excess water is then removed from the mold using a vacuum or other means, and the concrete is left to set and cure.
A wet casting system typically includes several pieces of equipment, such as a mixer, a mold cleaning machine, a vibrating table, and a curing chamber. The mixer is used to mix the wet concrete, while the mold cleaning machine is used to clean and prepare the molds for casting. The vibrating table is used to ensure that the concrete is evenly distributed in the mold, and the curing chamber is used to maintain the proper temperature and humidity levels during the curing process.
Wet casting systems are popular because they allow for precise control over the mix design and color of the finished product. They also allow for the production of complex shapes and designs that would be difficult to achieve with other casting methods. Additionally, wet casting systems can produce high-quality concrete products with a smooth surface finish and consistent color.



Specification:



Name Model Specification Size(mm) Power(Kw) Capacity(m2/day) Weight(Kg)
Wet Cast Machinery HTX-P-01

Hydraulic driving;Auto feeding;

vibrating and timing feeding

7000*1000*1800 12.7 1000-1500 2000
Wet Cast Machinery HTX-P-02 Chain drived;Auto feeding,auto vibration 8000*1100*1600 4.05 800-1000 1500

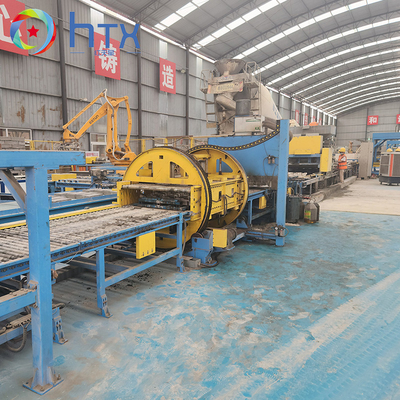

Wet Casting System Stacked Stone Concrete Sleepers Production Line 0

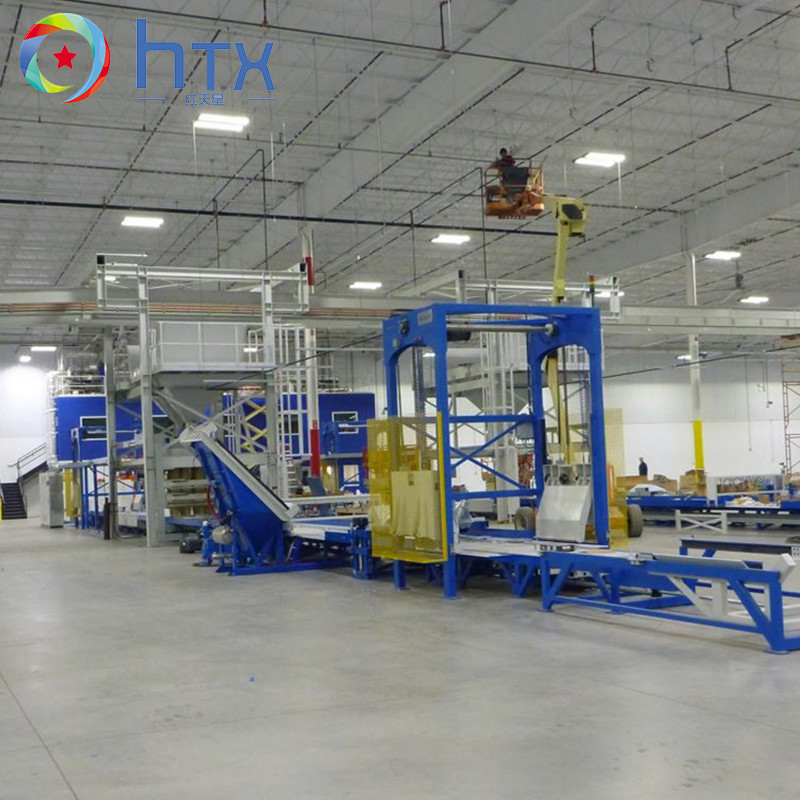

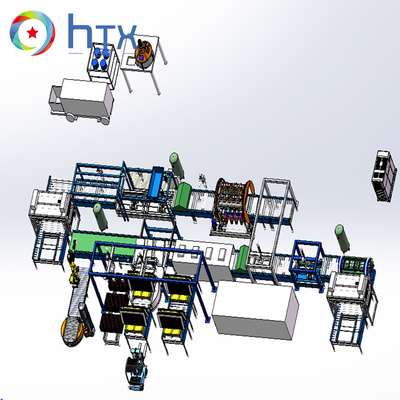

Wet Casting System Stacked Stone Concrete Sleepers Production Line 1Wet Casting System Stacked Stone Concrete Sleepers Production Line 2Wet Casting System Stacked Stone Concrete Sleepers Production Line 3





Applications

Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.

Wet Casting System Stacked Stone Concrete Sleepers Production Line 4Wet Casting System Stacked Stone Concrete Sleepers Production Line 5



Support and Services



Wet Cast Machinery technical support and services include:

  • On-site technical support and maintenance
  • Expert assistance with installation and setup
  • Remote and telephone troubleshooting and support
  • Periodic maintenance and inspection
  • Repair and replacement parts
  • Technical training and user manuals
  • Upgrades and software updates
