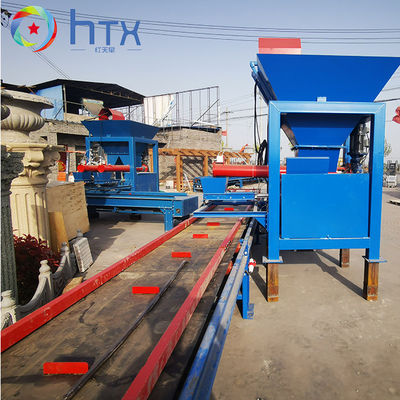

Automatic Concrete Sleepers Manufacturing Machine Veneer Stone Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Concrete Sleepers Manufacturing Machine | Size: | 1500*1300*2500cm |
|---|---|---|---|
| Usage: | Construction | Capacity: | 1000-1200m2 |
| Color: | Blue | Type: | Artificial Stone Product Line |
| High Light: | Construction Concrete Sleepers Manufacturing Machine,Automatic Concrete Sleepers Manufacturing Machine,Veneer Stone Fence Panel Machine |
||
Product Description
Concrete sleeper manufacturing machine, also known as a concrete sleeper production line, is a specialized industrial equipment used to produce concrete sleepers, which are reinforced concrete beams used as railway sleepers. These sleepers provide support and stability to railway tracks, ensuring safe and efficient transportation.
The manufacturing process of concrete sleepers typically involves the following steps:
1.Concrete Mixture Preparation: The process begins with the preparation of a concrete mixture. Cement, aggregates (such as sand, gravel, or crushed stone), water, and additives are combined in specific proportions to create a high-strength concrete mixture. The raw materials are typically stored in separate silos or bins and are transported to the mixing area.
2.Mixing and Batching: The concrete mixture is prepared using a batching plant or mixing machine. The materials are accurately measured and mixed together to achieve the desired consistency and quality. The mixing process ensures that the aggregates are evenly distributed throughout the concrete mixture.
3.Molding: The concrete mixture, along with the reinforcement, is poured into specialized molds or formwork. The molds are designed to create the desired shape and dimensions of the concrete sleepers. The machine used for molding can vary depending on the specific manufacturing process and requirements. It may involve a pre-stressed concrete sleeper production line or a post-tensioned concrete sleeper production line.
4.Demolding and Finishing: Once the concrete sleepers have sufficiently cured and gained strength, they are removed from the molds. The sleepers may undergo further finishing processes, such as trimming excess material, smoothing the surfaces, and applying any necessary surface treatments or coatings. Quality control checks are performed throughout the production process to ensure that the concrete sleepers meet the required specifications, including dimensions, strength, and appearance.
5.Packaging and Storage: The finished concrete sleepers are typically stacked, packaged, and stored in a designated area. They are then ready for transportation to railway construction sites or distribution to customers.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding
|
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
