Lightweight Artificial Stone / Cultured Stone Wet Cast Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Wet Cast Concrete Machinery | Voltage: | 220V |
|---|---|---|---|
| Key Selling Points: | High Productivity | Capacity: | 800-1000m2 |
| Brick Type: | Concrete Dosing System | Weight: | 2000KG |
| High Light: | Cultured Stone Wet Cast Production Line,Lightweight Artificial Stone Production Line,Stone Wet Cast Machinery |
||
Product Description

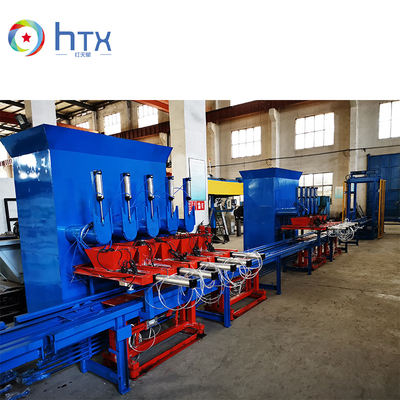

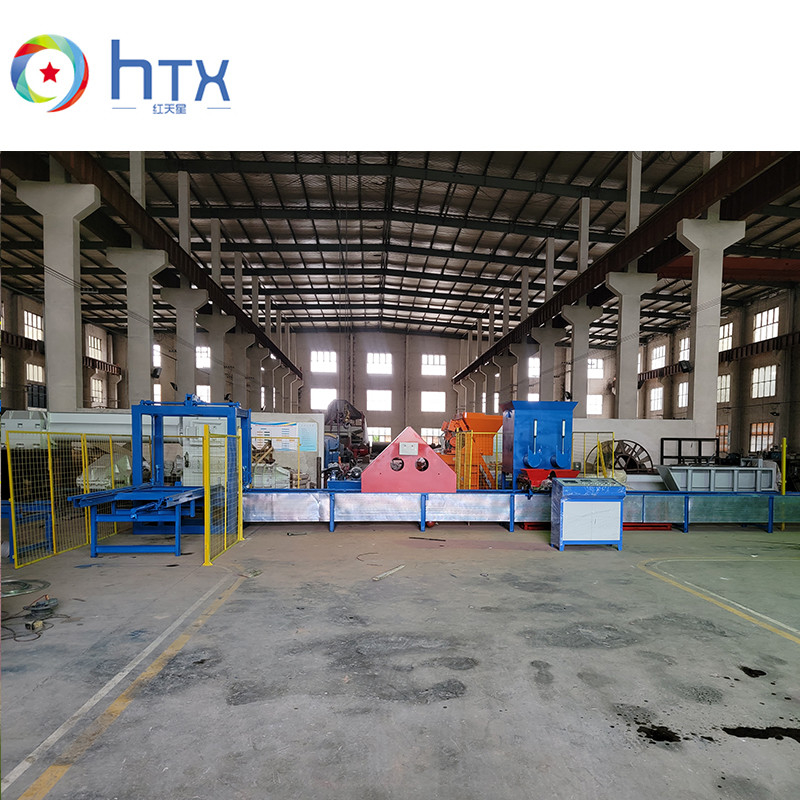

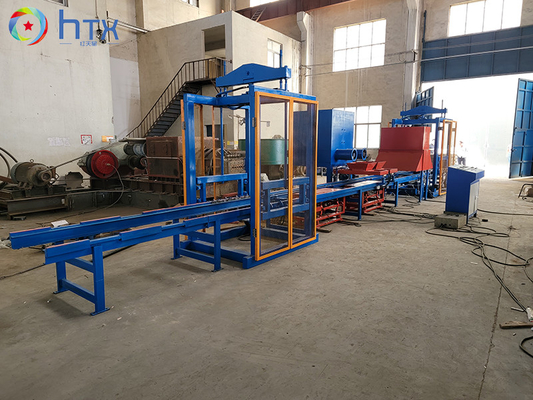

Lightweight Artificial Stone Cultured Stone Wet Cast Production Line
Product Description
Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .
Auto Wet Conrete Dosing System Production line include :Wet concrete dosing system , Cement Silo ,Batching machine, Auto Concrete forced Mixer,Forklift,Auto unloading machine,Auto Spray Machine,Auto Dosing Machine,Auto Stacking Machine,Pallet transfer machine,Empty Pallet Belt conveyor,Full Pallet Belt Conveyor,Air compressor, Auto Screen controller.
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Applications
Auto Wet Conrete Dosing System Production line advantages:
1.More efficient production, can achieve 800M2 Per day(8hrs)
2.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
3.Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.
4. The auto spray painting machine, has function for mold oil sparying, stroll color painting and full color painting, also it can be turned on/off separately.
Feature advantage
Henan HTX Group Co Ltd, specialized in designing, developing, producing and marketing of artificial stone molds, paving tile molds, concrete stamp molds, pillar molds, roman column molds, and relative machines and production lines.we have more than 200 mould designs and sizes. The updated silicone material make the stone mold more durable and have good characteristic. After use again and again,our updated silicone mould still have a clear & natural texture and without any deformation.
