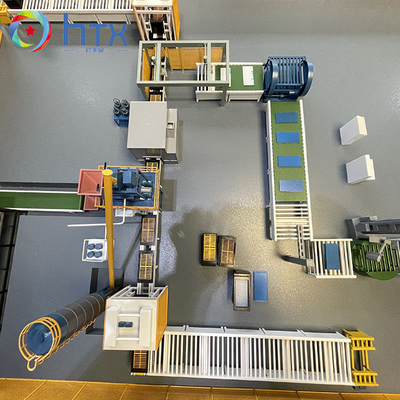

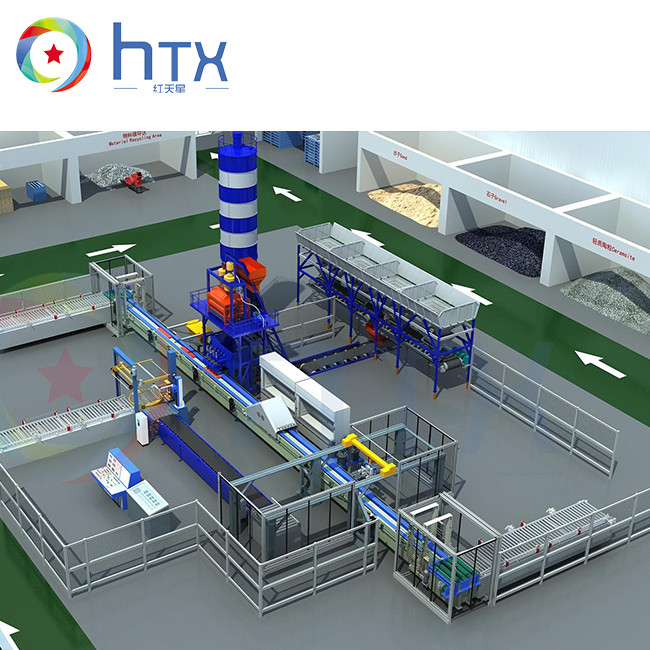

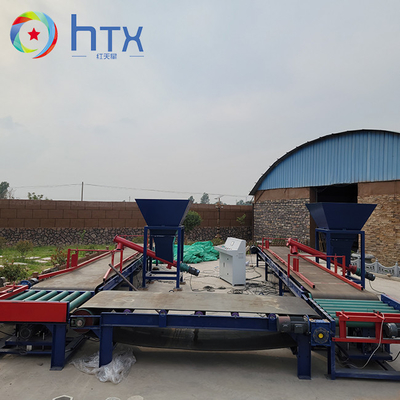

Automatic Artificial Stone Production Line Concrete Material Volumetric Doser
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Wet Cast Concrete Machinery | Voltage: | 220V |
|---|---|---|---|
| Key Selling Points: | High Productivity | Capacity: | 800-1000m2 |
| Brick Type: | Concrete Dosing System | Weight: | 2000KG |
| Highlight: | Artificial Stone Volumetric Doser,Automatic Concrete Volumetric Doser,Volumetric Concrete Dosing System |
||
Product Description
Automatic Artificial Stone Production Line Concrete Material Volumetric Doser
Product Description
A concrete dosing system is a specialized piece of equipment used in the production of concrete products, such as paving stones, slabs, and retaining wall blocks. The dosing system is responsible for accurately measuring and dispensing the ingredients needed to create a concrete mixture, which typically includes cement, aggregates (such as sand and gravel), water, and additives.
The concrete dosing system operates by first dispensing the dry ingredients from the hopper into the mixing chamber, where they are mixed with water and additives to create a wet concrete mixture. The machine's weighing system ensures that the correct amount of each ingredient is dispensed, while the dosing system controls the flow of water and additives to achieve the desired mix proportions.
Once the wet concrete mixture is prepared, it is typically transported to a moldor form using a conveyor or other handling equipment. The wet concrete mixture is then poured into the mold or form, where it is allowed to cure and harden. The resulting concrete product will have the desired strength, durability, and other physical properties based on the specific mix proportions used.
Concrete dosing systems can be highly automated and can be programmed to produce a wide range of mix designs, allowing manufacturers to produce custom products to meet specific customer requirements. The precision and consistency of the dosing and mixing processes ensure that the finished products have the desired physical properties and meet the required specifications.
Overall, a concrete dosing system is an essential component in the production of high-quality concrete products. These machines are highly automated and can be integrated into a larger production line, allowing for efficient and consistent production of concrete products in large volumes.
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Applications
Auto Wet Conrete Dosing System Production line advantages:
1.More efficient production, can achieve 800M2 Per day(8hrs)
2.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
3.Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.
4. The auto spray painting machine, has function for mold oil sparying, stroll color painting and full color painting, also it can be turned on/off separately.
