Fully Automatic Artificial Stone Production Line Wall Panel Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Automatic Culture Stone Production Line | Stone Form: | Wall Brick |
|---|---|---|---|
| Feature: | High Productivity | Auto Degree: | Fully Automatic |
| Function: | Long Service Life | Application: | Interior And Exterior |
| High Light: | Clay Artificial Stone Production Line,Automatic Precast Concrete Wall Panel Machine,Concrete Flagstone Production Line |
||
Product Description
Fully Automatic Artificial Stone Production Line Wall Panel Production Machine
Product Description:

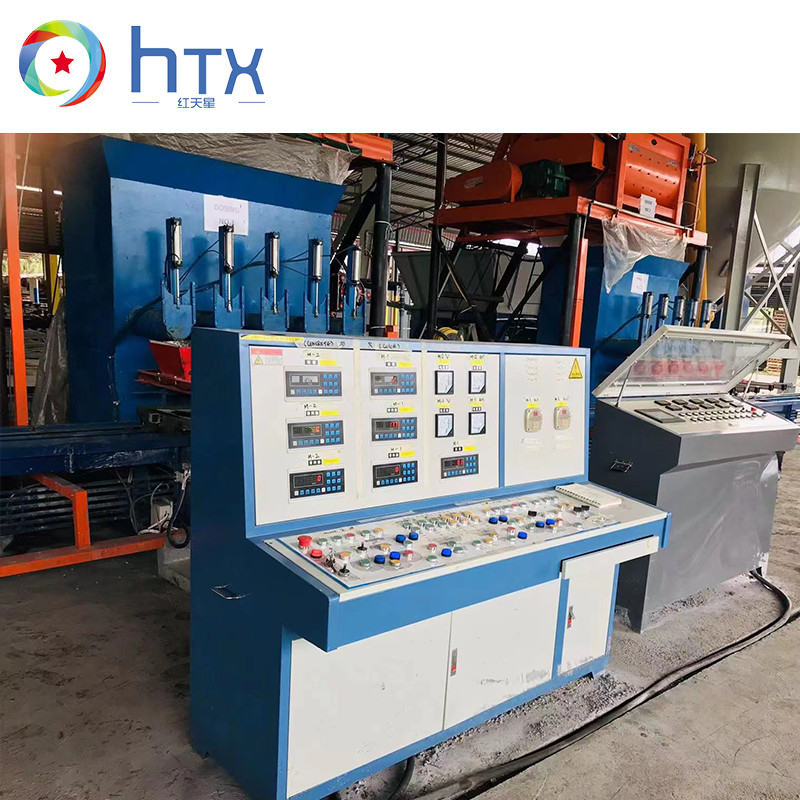

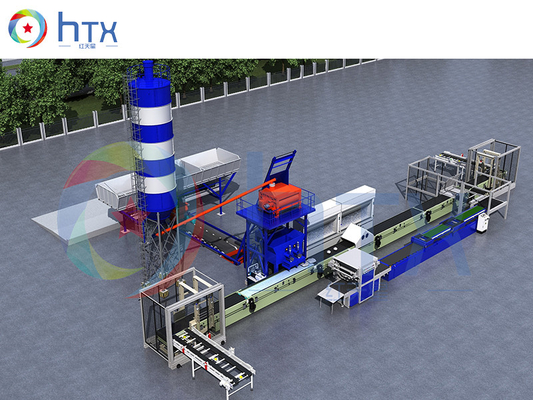

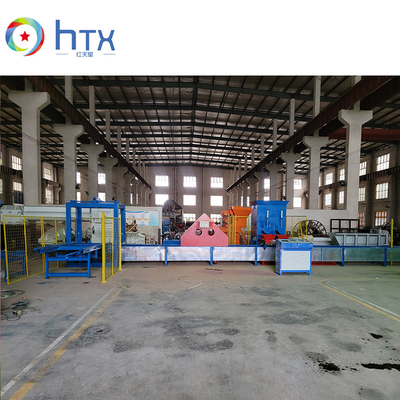

The precast concrete production line making machine is divided into 15 parts from ingredients to packaging, which are connected and operated through a programmable control cabinet, each part and half part can work independently.All the parts include cement silo, batching machine,Auto Concrete forced Mixer,auto unloading machine , auto pallet turning machine,Auto Spray Machine,concrete filling machine,auto stacking machine,auto packing machine,auto demoulding machine,auto vibration part,Hydraulic conveyor,Air compressor,auto screen controller ,dust collecting machine.
1.Auto unloading machine: Used to unload and transport the pallet with empty molds pcs by pcs.
2.Vibration Conveyor With Frequency Motor:
Full Pallet Belt Vibration Conveyor With Chain & Conveyor and belt for mold before
Filling:Two vibration points with the belt,Vibration force can be adjusted through the Control Cabinet.
Each of the two vibrations can work independently, frequency motor can make belt speed adjustable.
3.Auto Spray Machine:
8 Spray gun set in total.controlled by carbinet,with timer and redar sensor
controller,can paint more precisely. Function: 1- First 3 spray gun to move the dust and particles in the molds.
2- Middle 2 spary gun paint demolding oil/first surface color for artificial stone.
3- The last 3 spary gun will be used to paint the second layer artificial stone color or spray the demolding oil area to place in a plain way for the above 2 and 3 points, if not spray color, the 5 spay guns are used for spray demold
oil. At the same time, it is equipped with a dust treatment function, which can achieve high-efficiency production and achieve environmental protection.
Specification:
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
Finished Products
FAQ:
1. Can you make custom designed products?
Yes, we can according to customer requirements, such as shape, size, color, pattern and other details of the product to make.
2. How could I know the price of the item?
If you want to know our normal products, you just tell us the item number and your information, I'll give you the best price
If you have individual design requirements, please tell us the following information so that we can offer the price immediately.
1) Product model and measurements (you better have drawings, samples or photos).
2) The expected delivery time.
3) Your contact details information.
3. What is the MOQ ?
Under normal circumstances, there is no limited to MOQ. It is subject to our esteemed customers. More quantities, the price is more better.
4. How about the payment terms?
The prefer payment terms is 30% TT against order, and balance before shipping.
