Concrete Mould Turnover Wet Doser Machine Artificial Stone Veneer Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Artificial Stone Automatic Production Line | Material: | Steel |
|---|---|---|---|
| Size: | 1500*1300*2500cm | Feature: | Automatic |
| Voltage: | 220V | Power: | 37.6KW |
| High Light: | Artificial Stone Veneer Production Line,Concrete Flagstone Wet Doser Machine,Mould Turnover Wet Doser Machine |
||
Product Description

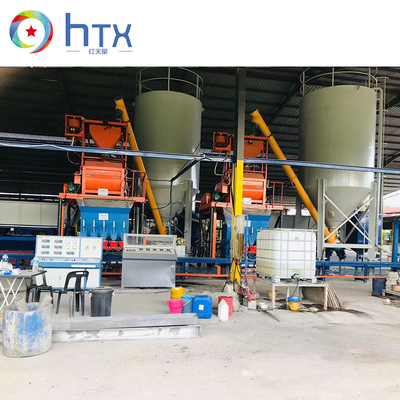

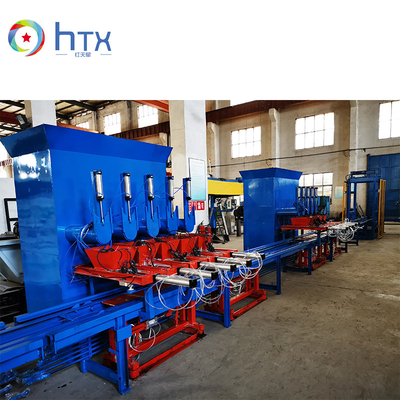

Concrete Wet Cast Mould Turnover Wet Doser Machine Artificial Stone Veneer Production Line
Product Description:
Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .

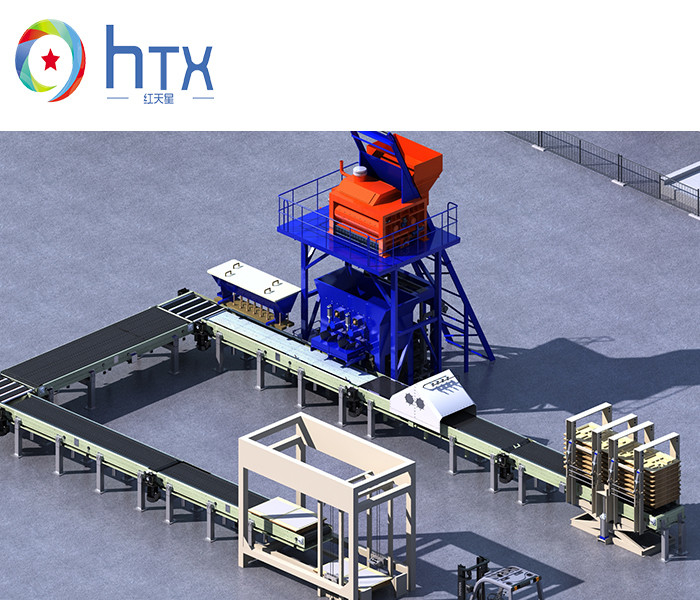

The cultural stone production line relates to the technical field of artificial stone production, and discloses an artificial cultural stone mold turning device, comprising a first conveying platform and a second conveying platform arranged in parallel, and a turning frame is arranged between the first conveying platform and the second conveying platform, A clamping mechanism is arranged in the overturning frame, the end of the overturning frame is provided with a holding mechanism corresponding to the clamping mechanism, and the second conveying platform includes a material receiving and conveying mechanism corresponding to the overturning frame and the clamping mechanism. wet casting doser machine Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.The auto spray painting machine, has function for mold oil painting, stroll color painting and full color painting, also it can be turned on/off separately.
Specification:
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
Finished Products
Certificate
